Tensorflow2教程-文本卷积

Tensorflow2教程-文本卷积

Tensorflow2教程-文本卷积

最全Tensorflow 2.0 入门教程持续更新:

Doit:最全Tensorflow 2.0 入门教程持续更新zhuanlan.zhihu.com图标

完整tensorflow2.0教程代码请看https://github.com/czy36mengfei/tensorflow2_tutorials_chinese (欢迎star)

本教程主要由tensorflow2.0官方教程的个人学习复现笔记整理而来,中文讲解,方便喜欢阅读中文教程的朋友,官方教程:https://www.tensorflow.org


1.基本文本卷积


- 使用卷积进行句子分类(Kim 2014)



- 多个卷积核



import numpy as np
import matplotlib.pyplot as plt
from tensorflow import keras
from tensorflow.keras import layers
from tensorflow.keras.preprocessing.sequence import pad_sequences
num_features = 3000
sequence_length = 300
embedding_dimension = 100
(x_train, y_train), (x_test, y_test) = keras.datasets.imdb.load_data(num_words=num_features)
print(x_train.shape)
print(x_test.shape)
print(y_train.shape)
print(y_test.shape)
(25000,)
(25000,)
(25000,)
(25000,)
x_train = pad_sequences(x_train, maxlen=sequence_length)
x_test = pad_sequences(x_test, maxlen=sequence_length)
print(x_train.shape)
print(x_test.shape)
print(y_train.shape)
print(y_test.shape)
(25000, 300)
(25000, 300)
(25000,)
(25000,)

2.构造基本句子分类器

def imdb_cnn():
    model = keras.Sequential([
        layers.Embedding(input_dim=num_features, output_dim=embedding_dimension,input_length=sequence_length),
        layers.Conv1D(filters=50, kernel_size=5, strides=1, padding='valid'),
        layers.MaxPool1D(2, padding='valid'),
        layers.Flatten(),
        layers.Dense(10, activation='relu'),
        layers.Dense(1, activation='sigmoid')
    ])
    model.compile(optimizer=keras.optimizers.Adam(1e-3),
                 loss=keras.losses.BinaryCrossentropy(),
                 metrics=['accuracy'])

    return model
model = imdb_cnn()
model.summary()
Model: "sequential_3"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
embedding_3 (Embedding)      (None, 300, 100)          300000
_________________________________________________________________
conv1d_3 (Conv1D)            (None, 296, 50)           25050
_________________________________________________________________
max_pooling1d_3 (MaxPooling1 (None, 148, 50)           0
_________________________________________________________________
flatten_3 (Flatten)          (None, 7400)              0
_________________________________________________________________
dense_6 (Dense)              (None, 10)                74010
_________________________________________________________________
dense_7 (Dense)              (None, 1)                 11
=================================================================
Total params: 399,071
Trainable params: 399,071
Non-trainable params: 0
_________________________________________________________________
%%time
history = model.fit(x_train, y_train, batch_size=64, epochs=5, validation_split=0.1)
Train on 22500 samples, validate on 2500 samples
Epoch 1/5
22500/22500 [==============================] - 23s 1ms/sample - loss: 0.4255 - accuracy: 0.7789 - val_loss: 0.3002 - val_accuracy: 0.8732
Epoch 2/5
22500/22500 [==============================] - 22s 960us/sample - loss: 0.2367 - accuracy: 0.9060 - val_loss: 0.2985 - val_accuracy: 0.8752
Epoch 3/5
22500/22500 [==============================] - 23s 1ms/sample - loss: 0.1171 - accuracy: 0.9603 - val_loss: 0.3549 - val_accuracy: 0.8680
Epoch 4/5
22500/22500 [==============================] - 22s 969us/sample - loss: 0.0286 - accuracy: 0.9937 - val_loss: 0.4745 - val_accuracy: 0.8656
Epoch 5/5
22500/22500 [==============================] - 22s 964us/sample - loss: 0.0047 - accuracy: 0.9996 - val_loss: 0.5525 - val_accuracy: 0.8684
CPU times: user 4min 33s, sys: 4.77 s, total: 4min 38s
Wall time: 1min 50s

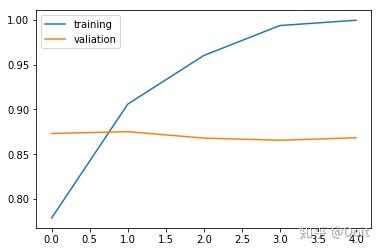

plt.plot(history.history['accuracy'])
plt.plot(history.history['val_accuracy'])
plt.legend(['training', 'valiation'], loc='upper left')
plt.show()


3.多核卷积网络

filter_sizes=[3,4,5]
def convolution():
    inn = layers.Input(shape=(sequence_length, embedding_dimension, 1))
    cnns = []
    for size in filter_sizes:
        conv = layers.Conv2D(filters=64, kernel_size=(size, embedding_dimension),
                            strides=1, padding='valid', activation='relu')(inn)
        pool = layers.MaxPool2D(pool_size=(sequence_length-size+1, 1), padding='valid')(conv)
        cnns.append(pool)
    outt = layers.concatenate(cnns)

    model = keras.Model(inputs=inn, outputs=outt)
    return model

def cnn_mulfilter():
    model = keras.Sequential([
        layers.Embedding(input_dim=num_features, output_dim=embedding_dimension,
                        input_length=sequence_length),
        layers.Reshape((sequence_length, embedding_dimension, 1)),
        convolution(),
        layers.Flatten(),
        layers.Dense(10, activation='relu'),
        layers.Dropout(0.2),
        layers.Dense(1, activation='sigmoid')

    ])
    model.compile(optimizer=keras.optimizers.Adam(),
                 loss=keras.losses.BinaryCrossentropy(),
                 metrics=['accuracy'])
    return model

model = cnn_mulfilter()
model.summary()
Model: "sequential_4"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
embedding_5 (Embedding)      (None, 300, 100)          300000
_________________________________________________________________
reshape_1 (Reshape)          (None, 300, 100, 1)       0
_________________________________________________________________
model (Model)                (None, 1, 1, 192)         76992
_________________________________________________________________
flatten_4 (Flatten)          (None, 192)               0
_________________________________________________________________
dense_8 (Dense)              (None, 10)                1930
_________________________________________________________________
dropout (Dropout)            (None, 10)                0
_________________________________________________________________
dense_9 (Dense)              (None, 1)                 11
=================================================================
Total params: 378,933
Trainable params: 378,933
Non-trainable params: 0
_________________________________________________________________
%%time
history = model.fit(x_train, y_train, batch_size=64, epochs=5, validation_split=0.1)
Train on 22500 samples, validate on 2500 samples
Epoch 1/5
22500/22500 [==============================] - 40s 2ms/sample - loss: 0.4740 - accuracy: 0.7557 - val_loss: 0.3136 - val_accuracy: 0.8724
Epoch 2/5
22500/22500 [==============================] - 40s 2ms/sample - loss: 0.2623 - accuracy: 0.8968 - val_loss: 0.2967 - val_accuracy: 0.8796
Epoch 3/5
22500/22500 [==============================] - 43s 2ms/sample - loss: 0.1840 - accuracy: 0.9350 - val_loss: 0.2893 - val_accuracy: 0.8868
Epoch 4/5
22500/22500 [==============================] - 40s 2ms/sample - loss: 0.1215 - accuracy: 0.9599 - val_loss: 0.3308 - val_accuracy: 0.8772
Epoch 5/5
22500/22500 [==============================] - 45s 2ms/sample - loss: 0.0694 - accuracy: 0.9806 - val_loss: 0.3699 - val_accuracy: 0.8848
CPU times: user 10min 52s, sys: 4.88 s, total: 10min 56s
Wall time: 3min 28s
plt.plot(history.history['accuracy'])
plt.plot(history.history['val_accuracy'])
plt.legend(['training', 'valiation'], loc='upper left')
plt.show()

tensorflow 2.0 入门教程

TensorFlow 2.0 教程- Keras 快速入门

TensorFlow 2.0 教程-keras 函数api

TensorFlow 2.0 教程-使用keras训练模型

TensorFlow 2.0 教程-用keras构建自己的网络层

TensorFlow 2.0 教程-keras模型保存和序列化


参考材料:

buomsoo-kim/Easy-deep-learning-with-Keras
