TensorFlow2.0教程-自编码器

TensorFlow2.0教程-自编码器

TensorFlow2.0教程-自编码器

最全Tensorflow 2.0 入门教程持续更新:

Doit:最全Tensorflow 2.0 入门教程持续更新zhuanlan.zhihu.com图标

完整tensorflow2.0教程代码请看https://github.com/czy36mengfei/tensorflow2_tutorials_chinese (欢迎star)

本教程主要由tensorflow2.0官方教程的个人学习复现笔记整理而来,中文讲解,方便喜欢阅读中文教程的朋友,官方教程:https://www.tensorflow.org

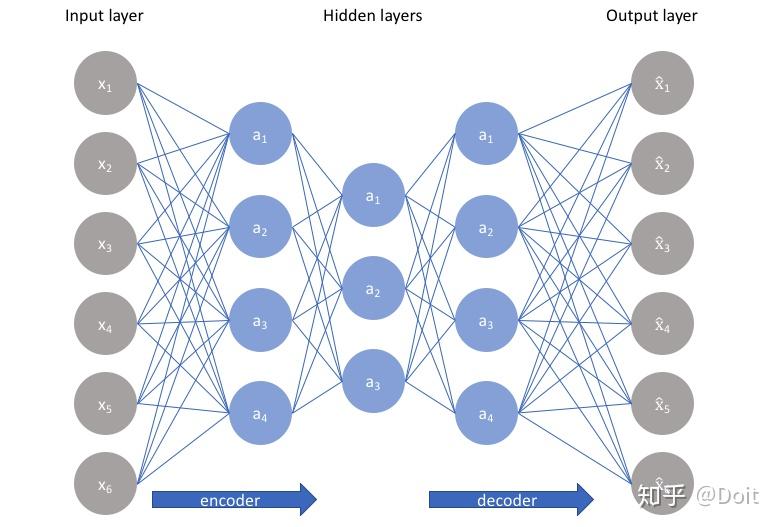

自动编码器的两个主要组成部分; 编码器和解码器 编码器将输入压缩成一小组“编码”(通常,编码器输出的维数远小于编码器输入) 解码器然后将编码器输出扩展为与编码器输入具有相同维度的输出 换句话说,自动编码器旨在“重建”输入,同时学习数据的有限表示(即“编码”)

1.导入数据

import tensorflow as tf
import tensorflow.keras as keras
import tensorflow.keras.layers as layers
from IPython.display import SVG
print(tf.__version__)
2.0.0-alpha0
(x_train, y_train), (x_test, y_test) = keras.datasets.mnist.load_data()
x_train = x_train.reshape((-1, 28*28)) / 255.0
x_test = x_test.reshape((-1, 28*28)) / 255.0

print(x_train.shape, ' ', y_train.shape)
print(x_test.shape, ' ', y_test.shape)
(60000, 784)   (60000,)
(10000, 784)   (10000,)

2.简单的自编码器

code_dim = 32
inputs = layers.Input(shape=(x_train.shape[1],), name='inputs')
code = layers.Dense(code_dim, activation='relu', name='code')(inputs)
outputs = layers.Dense(x_train.shape[1], activation='softmax', name='outputs')(code)

auto_encoder = keras.Model(inputs, outputs)
auto_encoder.summary()
Model: "model"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
inputs (InputLayer)          [(None, 784)]             0
_________________________________________________________________
code (Dense)                 (None, 32)                25120
_________________________________________________________________
outputs (Dense)              (None, 784)               25872
=================================================================
Total params: 50,992
Trainable params: 50,992
Non-trainable params: 0
_________________________________________________________________

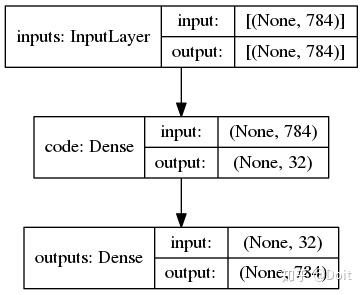

keras.utils.plot_model(auto_encoder, show_shapes=True)


encoder = keras.Model(inputs,code)
keras.utils.plot_model(encoder, show_shapes=True)

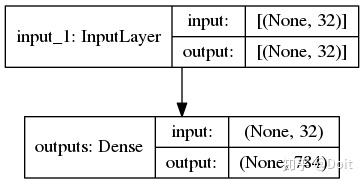

decoder_input = keras.Input((code_dim,))
decoder_output = auto_encoder.layers[-1](decoder_input)
decoder = keras.Model(decoder_input, decoder_output)
keras.utils.plot_model(decoder, show_shapes=True)
auto_encoder.compile(optimizer='adam',
                    loss='binary_crossentropy')

训练模型

%%time
history = auto_encoder.fit(x_train, x_train, batch_size=64, epochs=100, validation_split=0.1)
Train on 54000 samples, validate on 6000 samples
Epoch 100/100
54000/54000 [==============================] - 2s 45us/sample - loss: 0.6715 - val_loss: 0.6688
CPU times: user 6min 53s, sys: 23.2 s, total: 7min 16s
Wall time: 4min 24s

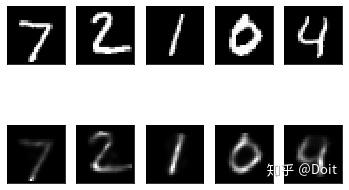

encoded = encoder.predict(x_test)
decoded = decoder.predict(encoded)
import matplotlib.pyplot as plt
plt.figure(figsize=(10,4))
<Figure size 1000x400 with 0 Axes>
n = 5
for i in range(n):
    ax = plt.subplot(2, n, i+1)
    plt.imshow(x_test[i].reshape(28,28))
    plt.gray()
    ax.get_xaxis().set_visible(False)
    ax.get_yaxis().set_visible(False)

    ax = plt.subplot(2, n, n+i+1)
    plt.imshow(decoded[i].reshape(28,28))
    plt.gray()
    ax.get_xaxis().set_visible(False)
    ax.get_yaxis().set_visible(False)
plt.show()


参考材料:

buomsoo-kim/Easy-deep-learning-with-Keras

编辑于 2019-05-02
