Linux系统调用过程分析

Linux系统调用过程分析

背景

为了安全,Linux 中分为用户态和内核态两种运行状态。对于普通进程,平时都是运行在用户态下,仅拥有基本的运行能力。当进行一些敏感操作,比如说要打开文件(open)然后进行写入(write)、分配内存(malloc)时,就会切换到内核态。内核态进行相应的检查,如果通过了,则按照进程的要求执行相应的操作,分配相应的资源。这种机制被称为系统调用,用户态进程发起调用,切换到内核态,内核态完成,返回用户态继续执行,是用户态唯一主动切换到内核态的合法手段(exception 和 interrupt 是被动切换)。

关于系统调用的详细定义可以通过 man syscalls 查看,它列出了目前 Linux Kernel 提供的系统调用 ABI 。我们熟悉的调用比如 open, read ,close 之类的都属于系统调用,但它们都经过了 C 库 (glibc)的封装。实际上,只要符合 ABI 规范,我们可以自己用汇编代码来进行调用。

历史上,x86 的系统调用实现经历了 int / iret 到 sysenter / sysexit 再到 syscall / sysret 的演变。

以下的分析基于 Linux kernel 4.9.76 ,glibc 为 2.25.90。

int / iret

很久很久以前,我们通过 int 0x80 进行系统调用(open):

mov 0x05 ,eax       /* 设置系统调用号 */
int 0x80

arch/x86/kernel/traps.c的 trap_init 中,定义了各种 set_intr_gate / set_intr_gate_ist / set_system_intr_gate 。其中 set_system_intr_gate 用于在中断描述符表(IDT)上设置系统调用门:

#ifdef CONFIG_X86_32
   set_system_intr_gate(IA32_SYSCALL_VECTOR, entry_INT80_32);
   set_bit(IA32_SYSCALL_VECTOR, used_vectors);
#endif

根据 arch/x86/include/asm/irq_vectors.h, IA32_SYSCALL_VECTOR 值为 0x80。

于是在调用 int 0x80 后,硬件根据向量号在 IDT 中找到对应的表项,即中断描述符,进行特权级检查,发现 DPL = CPL = 3 ,允许调用。然后硬件将切换到内核栈 (tss.ss0 : tss.esp0)。接着根据中断描述符的 segment selector 在 GDT / LDT 中找到对应的段描述符,从段描述符拿到段的基址,加载到 cs 。将 offset 加载到 eip。最后硬件将 ss / sp / eflags / cs / ip / error code 依次压到内核栈。

2018.05.01 更新:该流程在 Intel SDM Vol. 2A INT n/INTO/INT 3—Call to Interrupt Procedure 中描述,我后来在文章 中断和异常 中进行了分析。

于是从 entry_INT80_32 开始执行,其定义在 arch/x86/entry/entry_32.S

ENTRY(entry_INT80_32)
    ASM_CLAC
    pushl   %eax            /* pt_regs->orig_ax */
    SAVE_ALL pt_regs_ax=$-ENOSYS    /* save rest */

    /*
     * User mode is traced as though IRQs are on, and the interrupt gate
     * turned them off.
     */
    TRACE_IRQS_OFF

    movl    %esp, %eax
    call    do_int80_syscall_32
...

它将存在 eax 中的系统调用号压入栈中,然后调用 SAVE_ALL 将其他寄存器的值压入栈中进行保存:

.macro SAVE_ALL pt_regs_ax=%eax
    cld
    PUSH_GS
    pushl   %fs
    pushl   %es
    pushl   %ds
    pushl   \pt_regs_ax
    pushl   %ebp
    pushl   %edi
    pushl   %esi
    pushl   %edx
    pushl   %ecx
    pushl   %ebx
    movl    $(__USER_DS), %edx
    movl    %edx, %ds
    movl    %edx, %es
    movl    $(__KERNEL_PERCPU), %edx
    movl    %edx, %fs
    SET_KERNEL_GS %edx
.endm

保存完毕后,关闭中断,将当前栈指针保存到 eax ,调用 do_int80_syscall_32 => do_syscall_32_irqs_on ,该函数在 arch/x86/entry/common.c 中定义:

static __always_inline void do_syscall_32_irqs_on(struct pt_regs *regs)
{
    struct thread_info *ti = current_thread_info();
    unsigned int nr = (unsigned int)regs->orig_ax;

#ifdef CONFIG_IA32_EMULATION
    current->thread.status |= TS_COMPAT;
#endif

    if (READ_ONCE(ti->flags) & _TIF_WORK_SYSCALL_ENTRY) {
        /*
         * Subtlety here: if ptrace pokes something larger than
         * 2^32-1 into orig_ax, this truncates it.  This may or
         * may not be necessary, but it matches the old asm
         * behavior.
         */
        nr = syscall_trace_enter(regs);
    }

    if (likely(nr < IA32_NR_syscalls)) {
        /*
         * It's possible that a 32-bit syscall implementation
         * takes a 64-bit parameter but nonetheless assumes that
         * the high bits are zero.  Make sure we zero-extend all
         * of the args.
         */
        regs->ax = ia32_sys_call_table[nr](
            (unsigned int)regs->bx, (unsigned int)regs->cx,
            (unsigned int)regs->dx, (unsigned int)regs->si,
            (unsigned int)regs->di, (unsigned int)regs->bp);
    }

    syscall_return_slowpath(regs);
}

这个函数的参数 regs(struct pt_regs 定义见 arch/x86/include/asm/ptrace.h )就是先前在 entry_INT80_32 依次被压入栈的寄存器值。这里先取出系统调用号,从系统调用表(ia32_sys_call_table) 中取出对应的处理函数,然后通过先前寄存器中的参数调用之。

系统调用表 ia32_sys_call_table 在 arch/x86/entry/syscall_32.c 中定义,但内容有点奇怪,看上去表的内容是 include 进来的:

/* System call table for i386. */

#include <linux/linkage.h>
#include <linux/sys.h>
#include <linux/cache.h>
#include <asm/asm-offsets.h>
#include <asm/syscall.h>

#define __SYSCALL_I386(nr, sym, qual) extern asmlinkage long sym(unsigned long, unsigned long, unsigned long, unsigned long, unsigned long, unsigned long) ;
#include <asm/syscalls_32.h>
#undef __SYSCALL_I386

#define __SYSCALL_I386(nr, sym, qual) [nr] = sym,

extern asmlinkage long sys_ni_syscall(unsigned long, unsigned long, unsigned long, unsigned long, unsigned long, unsigned long);

__visible const sys_call_ptr_t ia32_sys_call_table[__NR_syscall_compat_max+1] = {
    /*
     * Smells like a compiler bug -- it doesn't work
     * when the & below is removed.
     */
    [0 ... __NR_syscall_compat_max] = &sys_ni_syscall,
#include <asm/syscalls_32.h>
};

然而我们到源码的arch/x86/include/asm目录下却找不到 syscalls_32.h 的,但在编译 kernel 后的arch/x86/include/generated/asm里面发现了它:

__SYSCALL_I386(0, sys_restart_syscall, )
__SYSCALL_I386(1, sys_exit, )
#ifdef CONFIG_X86_32
__SYSCALL_I386(2, sys_fork, )
#else
__SYSCALL_I386(2, sys_fork, )
#endif
__SYSCALL_I386(3, sys_read, )
__SYSCALL_I386(4, sys_write, )
#ifdef CONFIG_X86_32
__SYSCALL_I386(5, sys_open, )
#else
__SYSCALL_I386(5, compat_sys_open, )
...

这说明 syscalls_32.h 是在编译过程中动态生成的,请看脚本arch/x86/entry/syscalls/syscalltbl.sh,它读取了同目录下的 syscall_32.tbl ,为每一有效行都生成了__SYSCALL_${abi}($nr, $real_entry, $qualifier)结构。然后在宏__SYSCALL_I386的作用下形成了这样的定义:

__visible const sys_call_ptr_t ia32_sys_call_table[__NR_syscall_compat_max+1] = {
   [0 ... __NR_syscall_compat_max] = &sys_ni_syscall,

   [0] = sys_restart_syscall,
   [1] = sys_exit,
   [2] = sys_fork,
   [3] = sys_read,
   [4] = sys_write,
   [5] = sys_open,
   ...
};

根据 GCC文档 ,这样的初始化方法在 ISO C99 中定义,个人称之为数组的乱序初始化。

因为我们的调用号是 0x05 ,所以这里调用了 sys_open ,定义在 fs/open.c 中定义:

SYSCALL_DEFINE3(open, const char __user *, filename, int, flags, umode_t, mode)
{
    if (force_o_largefile())
        flags |= O_LARGEFILE;

    return do_sys_open(AT_FDCWD, filename, flags, mode);
}

宏 SYSCALL_DEFINE3 及相关定义如下:

#define SYSCALL_DEFINE3(name, ...) SYSCALL_DEFINEx(3, _##name, __VA_ARGS__)

#define SYSCALL_DEFINEx(x, sname, ...)                \
        SYSCALL_METADATA(sname, x, __VA_ARGS__)       \
        __SYSCALL_DEFINEx(x, sname, __VA_ARGS__)

#define __SYSCALL_DEFINEx(x, name, ...)                                 \
        asmlinkage long sys##name(__MAP(x,__SC_DECL,__VA_ARGS__))       \
                __attribute__((alias(__stringify(SyS##name))));         \
                                                                        \
        static inline long SYSC##name(__MAP(x,__SC_DECL,__VA_ARGS__));  \
                                                                        \
        asmlinkage long SyS##name(__MAP(x,__SC_LONG,__VA_ARGS__));      \
                                                                        \
        asmlinkage long SyS##name(__MAP(x,__SC_LONG,__VA_ARGS__))       \
        {                                                               \
                long ret = SYSC##name(__MAP(x,__SC_CAST,__VA_ARGS__));  \
                __MAP(x,__SC_TEST,__VA_ARGS__);                         \
                __PROTECT(x, ret,__MAP(x,__SC_ARGS,__VA_ARGS__));       \
                return ret;                                             \
        }                                                               \
                                                                        \
        static inline long SYSC##name(__MAP(x,__SC_DECL,__VA_ARGS__))

SYSCALL_METADATA 保存了调用的基本信息,供调试程序跟踪使用( kernel 需开启 CONFIG_FTRACE_SYSCALLS )。

__SYSCALL_DEFINEx 用于拼接函数,函数名被拼接为 sys##_##open,参数也通过 __SC_DECL 拼接,最终得到展开后的定义:

asmlinkage long sys_open(const char __user * filename, int flags, umode_t mode)
{
    if (force_o_largefile())
        flags |= O_LARGEFILE;

    return do_sys_open(AT_FDCWD, filename, flags, mode);
}

sys_open 是对 do_sys_open 的封装:

long do_sys_open(int dfd, const char __user *filename, int flags, umode_t mode)
{
    struct open_flags op;
    int fd = build_open_flags(flags, mode, &op);
    struct filename *tmp;

    if (fd)
        return fd;

    tmp = getname(filename);
    if (IS_ERR(tmp))
        return PTR_ERR(tmp);

    fd = get_unused_fd_flags(flags);
    if (fd >= 0) {
        struct file *f = do_filp_open(dfd, tmp, &op);
        if (IS_ERR(f)) {
            put_unused_fd(fd);
            fd = PTR_ERR(f);
        } else {
            fsnotify_open(f);
            fd_install(fd, f);
        }
    }
    putname(tmp);
    return fd;
}

getname 将处于用户态的文件名拷到内核态,然后通过 get_unused_fd_flags 获取一个没用过的文件描述符,然后 do_filp_open 创建 struct file , fd_install 将 fd 和 struct file 绑定(task_struct->files->fdt[fd] = file),然后返回 fd。

fd一直返回到 do_syscall_32_irqs_on ,被设置到 regs->ax (eax) 中。接着返回 entry_INT80_32 继续执行,最后执行 INTERRUPT_RETURN 。 INTERRUPT_RETURN 在 arch/x86/include/asm/irqflags.h 中定义为 iret ,负责恢复先前压栈的寄存器,返回用户态。系统调用执行完毕。

在目前主流的系统调用库(glibc) 中,int 0x80 只有在硬件不支持快速系统调用(sysenter / syscall)的时候才会调用,但目前的硬件都支持快速系统调用,所以为了能够看看 int 0x80 的效果,我们手撸汇编:

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int main(){
    char * filename = "/tmp/test";
    char * buffer = malloc(80);
    memset(buffer, 0, 80);
    int count;
    __asm__ __volatile__("movl $0x5, %%eax\n\t"
                         "movl %1, %%ebx\n\t"
                         "movl $0, %%ecx\n\t"
                         "movl $0664, %%edx\n\t"
                         "int $0x80\n\t"
                         "movl %%eax, %%ebx\n\t"
                         "movl $0x3, %%eax\n\t"
                         "movl %2, %%ecx\n\t"
                         "movl $80, %%edx\n\t"
                         "int $0x80\n\t"
                         "movl %%eax, %0\n\t"
                         :"=m"(count)
                         :"g"(filename), "g"(buffer)
                         :"%eax", "%ebx", "%ecx", "%edx");
    printf("%d\n", count);
    printf("%s\n", buffer);
    free(buffer);
}

这段代码首先通过int 0x80调用系统调用 open 得到 fd (由 eax 返回),再作为 read 的参数传入,从而读出了文件中的内容。但比较奇怪的是如果 buffer 存储在栈中 (buffer[80]),则调用 read 失败。只有将 buffer 作为全局变量或存储在堆中,才能调用成功。希望有知道的大大指点一下。

sysenter / sysexit

接下来介绍的是 32位下 Intel 提出的快速系统调用 sysenter/sysexit,它和同期AMD的 syscall/sysret 机制类似。

之所以提出新指令,是因为通过软中断来实现系统调用实在太慢了。于是 Intel x86 CPU 自 Pentium II(Family 6, Model 3, Stepping 3)之后,开始支持新的系统调用指令 sysenter/sysexit。前者用于从低特权级切换到 ring 0,后者用于 从ring 0 切换到低特权级。没有特权级别检查(CPL, DPL),也没有压栈的操作,快最重要!

在 Intel SDM 中阐述了sysenter指令。首先 CPU 有一堆特殊的寄存器,名为 Model-Specific Register(MSR),这些寄存器在操作系统运行过程中起着重要作用。对于这些寄存器,需要采用专门的指令 RDMSR 和 WRMSR 进行读写。

sysenter 用到了以下 MSR (定义在 arch/x86/include/asm/msr-index.h):

  • IA32_SYSENTER_CS(174H):存放内核态处理代码的段选择符
  • IA32_SYSENTER_EIP(175H):存放内核态栈顶偏移量
  • IA32_SYSENTER_ESP(176H):存放内核态处理代码偏移量

当执行 sysenter 时,执行以下操作:

  1. 清除 FLAGS 的 VM 标志,确保在保护模式下运行
  2. 清除 FLAGS 的 IF 标志,屏蔽中断
  3. 加载 IA32_SYSENTER_ESP 的值到 esp
  4. 加载 IA32_SYSENTER_EIP 的值到 eip
  5. 加载 SYSENTER_CS_MSR 的值到 CS
  6. 将 SYSENTER_CS_MSR + 8 的值加载到 ss 。因为在GDT中, ss 就跟在 cs 后面
  7. 开始执行(cs:eip)指向的代码

这些 MSR 在 arch/x86/kernel/cpu/common.c 的 enable_sep_cpu 中初始化:

void enable_sep_cpu(void)
{
    struct tss_struct *tss;
    int cpu;

    if (!boot_cpu_has(X86_FEATURE_SEP))
        return;

    cpu = get_cpu();
    tss = &per_cpu(cpu_tss, cpu);

    /*
     * We cache MSR_IA32_SYSENTER_CS's value in the TSS's ss1 field --
     * see the big comment in struct x86_hw_tss's definition.
     */

    tss->x86_tss.ss1 = __KERNEL_CS;
    wrmsr(MSR_IA32_SYSENTER_CS, tss->x86_tss.ss1, 0);

    wrmsr(MSR_IA32_SYSENTER_ESP,
          (unsigned long)tss + offsetofend(struct tss_struct, SYSENTER_stack),
          0);

    wrmsr(MSR_IA32_SYSENTER_EIP, (unsigned long)entry_SYSENTER_32, 0);

    put_cpu();
}

这里将 __KERNEL_CS 设置到 MSR_IA32_SYSENTER_CS 中,将 tss.SYSENTER_stack 地址设置到 MSR_IA32_SYSENTER_ESP 中,最后将内核入口点 entry_SYSENTER_32 的地址设置到 MSR_IA32_SYSENTER_EIP 中。

当用户程序进行系统调用时,实际上在用户态中最终会调用到 VDSO 中映射的 __kernel_vsyscall ,其定义位于 arch/x86/entry/vdso/vdso32/system_call.S

__kernel_vsyscall:
    CFI_STARTPROC
    pushl   %ecx
    CFI_ADJUST_CFA_OFFSET   4
    CFI_REL_OFFSET      ecx, 0
    pushl   %edx
    CFI_ADJUST_CFA_OFFSET   4
    CFI_REL_OFFSET      edx, 0
    pushl   %ebp
    CFI_ADJUST_CFA_OFFSET   4
    CFI_REL_OFFSET      ebp, 0

    #define SYSENTER_SEQUENCE   "movl %esp, %ebp; sysenter"
    #define SYSCALL_SEQUENCE    "movl %ecx, %ebp; syscall"

#ifdef CONFIG_X86_64
    /* If SYSENTER (Intel) or SYSCALL32 (AMD) is available, use it. */
    ALTERNATIVE_2 "", SYSENTER_SEQUENCE, X86_FEATURE_SYSENTER32, \
                      SYSCALL_SEQUENCE,  X86_FEATURE_SYSCALL32
#else
    ALTERNATIVE "", SYSENTER_SEQUENCE, X86_FEATURE_SEP
#endif

    /* Enter using int $0x80 */
    int $0x80
GLOBAL(int80_landing_pad)

    /*
     * Restore EDX and ECX in case they were clobbered.  EBP is not
     * clobbered (the kernel restores it), but it's cleaner and
     * probably faster to pop it than to adjust ESP using addl.
     */
    popl    %ebp
    CFI_RESTORE     ebp
    CFI_ADJUST_CFA_OFFSET   -4
    popl    %edx
    CFI_RESTORE     edx
    CFI_ADJUST_CFA_OFFSET   -4
    popl    %ecx
    CFI_RESTORE     ecx
    CFI_ADJUST_CFA_OFFSET   -4
    ret
    CFI_ENDPROC

    .size __kernel_vsyscall,.-__kernel_vsyscall
    .previous

__kernel_vsyscall 首先将寄存器当前值压栈保存,因为这些寄存器以后要用作系统调用传参。然后填入参数,调用 sysenter

ALTERNATIVE_2 宏实际上是在做选择,如果支持 X86_FEATURE_SYSENTER32(Intel CPU) ,则执行 SYSENTER_SEQUENCE ,如果支持 X86_FEATURE_SYSCALL32(AMD CPU),则执行 SYSCALL_SEQUENCE 。如果都不支持,那么啥都不干(???)。如果啥都没干,那么接着往下执行,即执行 int $0x80,退化到传统(legacy)方式进行系统调用。

注意 sysenter 指令会覆盖掉 esp ,因此 SYSENTER_SEQUENCE 中会将当前 esp 保存到 ebp 中。sysenter 同样会覆盖 eip ,但由于返回地址是固定的(__kernel_vsyscall 函数结尾),因此无需保存。

前文提到过,执行了 sysenter 指令之后直接切换到内核态,同时寄存器也都设置好了:eip 被设置为 IA32_SYSENTER_EIP 即 entry_SYSENTER_32 的地址,其定义在arch/x86/entry/entry_32.S中:

ENTRY(entry_SYSENTER_32)
    movl    TSS_sysenter_sp0(%esp), %esp
sysenter_past_esp:
    pushl   $__USER_DS      /* pt_regs->ss */
    pushl   %ebp            /* pt_regs->sp (stashed in bp) */
    pushfl              /* pt_regs->flags (except IF = 0) */
    orl $X86_EFLAGS_IF, (%esp)  /* Fix IF */
    pushl   $__USER_CS      /* pt_regs->cs */
    pushl   $0          /* pt_regs->ip = 0 (placeholder) */
    pushl   %eax            /* pt_regs->orig_ax */
    SAVE_ALL pt_regs_ax=$-ENOSYS    /* save rest */

    testl   $X86_EFLAGS_NT|X86_EFLAGS_AC|X86_EFLAGS_TF, PT_EFLAGS(%esp)
    jnz .Lsysenter_fix_flags
.Lsysenter_flags_fixed:

    /*
     * User mode is traced as though IRQs are on, and SYSENTER
     * turned them off.
     */
    TRACE_IRQS_OFF

    movl    %esp, %eax
    call    do_fast_syscall_32
...

/* arch/x86/kernel/asm-offsets_32.c */
/* Offset from the sysenter stack to tss.sp0 */
DEFINE(TSS_sysenter_sp0, offsetof(struct cpu_entry_area, tss.x86_tss.sp0) -
       offsetofend(struct cpu_entry_area, entry_stack_page.stack));

前文提到过,sysenter 会将 IA32_SYSENTER_ESP 加载到 esp 中,但 IA32_SYSENTER_ESP 保存的是 SYSENTER_stack 的地址,需要通过 TSS_sysenter_sp0 进行修正,指向进程的内核栈。

然后开始按照 pt_regs 的结构将相关寄存器中的值压入栈中,包括在 sysenter 前保存到 ebp 的用户态栈顶指针。由于 eip 无需保存,于是压入 0 用于占位。

最后调用 do_fast_syscall_32 ,该函数在 arch/x86/entry/common.c 中定义:

/* Returns 0 to return using IRET or 1 to return using SYSEXIT/SYSRETL. */
__visible long do_fast_syscall_32(struct pt_regs *regs)
{
    /*
     * Called using the internal vDSO SYSENTER/SYSCALL32 calling
     * convention.  Adjust regs so it looks like we entered using int80.
     */

    unsigned long landing_pad = (unsigned long)current->mm->context.vdso +
        vdso_image_32.sym_int80_landing_pad;

    /*
     * SYSENTER loses EIP, and even SYSCALL32 needs us to skip forward
     * so that 'regs->ip -= 2' lands back on an int $0x80 instruction.
     * Fix it up.
     */
    regs->ip = landing_pad;

    enter_from_user_mode();

    local_irq_enable();

    /* Fetch EBP from where the vDSO stashed it. */
    if (
#ifdef CONFIG_X86_64
        /*
         * Micro-optimization: the pointer we're following is explicitly
         * 32 bits, so it can't be out of range.
         */
        __get_user(*(u32 *)&regs->bp,
                (u32 __user __force *)(unsigned long)(u32)regs->sp)
#else
        get_user(*(u32 *)&regs->bp,
             (u32 __user __force *)(unsigned long)(u32)regs->sp)
#endif
        ) {

        /* User code screwed up. */
        local_irq_disable();
        regs->ax = -EFAULT;
        prepare_exit_to_usermode(regs);
        return 0;   /* Keep it simple: use IRET. */
    }

    /* Now this is just like a normal syscall. */
    do_syscall_32_irqs_on(regs);

#ifdef CONFIG_X86_64
    /*
     * Opportunistic SYSRETL: if possible, try to return using SYSRETL.
     * SYSRETL is available on all 64-bit CPUs, so we don't need to
     * bother with SYSEXIT.
     *
     * Unlike 64-bit opportunistic SYSRET, we can't check that CX == IP,
     * because the ECX fixup above will ensure that this is essentially
     * never the case.
     */
    return regs->cs == __USER32_CS && regs->ss == __USER_DS &&
        regs->ip == landing_pad &&
        (regs->flags & (X86_EFLAGS_RF | X86_EFLAGS_TF)) == 0;
#else
    /*
     * Opportunistic SYSEXIT: if possible, try to return using SYSEXIT.
     *
     * Unlike 64-bit opportunistic SYSRET, we can't check that CX == IP,
     * because the ECX fixup above will ensure that this is essentially
     * never the case.
     *
     * We don't allow syscalls at all from VM86 mode, but we still
     * need to check VM, because we might be returning from sys_vm86.
     */
    return static_cpu_has(X86_FEATURE_SEP) &&
        regs->cs == __USER_CS && regs->ss == __USER_DS &&
        regs->ip == landing_pad &&
        (regs->flags & (X86_EFLAGS_RF | X86_EFLAGS_TF | X86_EFLAGS_VM)) == 0;
#endif
}

由于没有保存 eip,我们需要计算系统调用完毕后返回到用户态的地址:current->mm->context.vdso + vdso_image_32.sym_int80_landing_pad (即跳过 sym_int80_landing_pad 来到 __kernel_vsyscall 的结尾) 覆盖掉先前压栈的 0 。

接下来就和 int 0x80 的流程一样,通过 do_syscall_32_irqs_on 从系统调用表中找到相应的处理函数进行调用。完成后,如果都符合 sysexit 的要求,返回 1,否则返回 0 。

...
    call    do_fast_syscall_32
    /* XEN PV guests always use IRET path */
    ALTERNATIVE "testl %eax, %eax; jz .Lsyscall_32_done", \
            "jmp .Lsyscall_32_done", X86_FEATURE_XENPV

/* Opportunistic SYSEXIT */
    TRACE_IRQS_ON           /* User mode traces as IRQs on. */
    movl    PT_EIP(%esp), %edx  /* pt_regs->ip */
    movl    PT_OLDESP(%esp), %ecx   /* pt_regs->sp */
1:  mov PT_FS(%esp), %fs
    PTGS_TO_GS
    popl    %ebx            /* pt_regs->bx */
    addl    $2*4, %esp      /* skip pt_regs->cx and pt_regs->dx */
    popl    %esi            /* pt_regs->si */
    popl    %edi            /* pt_regs->di */
    popl    %ebp            /* pt_regs->bp */
    popl    %eax            /* pt_regs->ax */

    /*
     * Restore all flags except IF. (We restore IF separately because
     * STI gives a one-instruction window in which we won't be interrupted,
     * whereas POPF does not.)
     */
    addl    $PT_EFLAGS-PT_DS, %esp  /* point esp at pt_regs->flags */
    btr $X86_EFLAGS_IF_BIT, (%esp)
    popfl

    /*
     * Return back to the vDSO, which will pop ecx and edx.
     * Don't bother with DS and ES (they already contain __USER_DS).
     */
    sti
    sysexit

根据 testl %eax, %eax; jz .Lsyscall_32_done ,如果 do_fast_syscall_32 的返回值(eax)为 0 ,表示不支持快速返回,于是跳转到 Lsyscall_32_done ,通过 iret 返回。否则继续执行下面代码,将内核栈中保存的值保存到相应寄存器中,然后通过 sysexit 返回。

注意这里将原有的 eip 设置到 edx、 esp 设置到 ecx ,这是因为根据 Intel SDM,sysexit 会用 edx 来设置 eip,用 ecx 来设置 esp ,从而指向先前用户空间的代码偏移和栈偏移。并加载 SYSENTER_CS_MSR+16 到 cs,加载 SYSENTER_CS_MSR+24 到 ss 。如此一来就回到了用户态的 __kernel_vsyscall 尾端。

实验

我们通过 gdb 一个 C 程序来检验一下:

#include <unistd.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>

int main(int argc, char *argv[]){
    char buffer[80] = "/tmp/test";
    int fd = open(buffer, O_RDONLY);
    int size = read(fd, buffer, sizeof(buffer));
    close(fd);
}



$ gcc -m32 -g -static -o read read.c
$ file read
read: ELF 32-bit LSB executable, Intel 80386, version 1 (GNU/Linux), statically linked, for GNU/Linux 2.6.32, BuildID[sha1]=8a7f3d69d3e4c9582551934b0617ad78e492e48c, not stripped



[txt]
(gdb) disas
   0x0804888a <+14>:    push   %ecx
   0x0804888b <+15>:    sub    $0x70,%esp
   0x0804888e <+18>:    mov    %ecx,%eax
   0x08048890 <+20>:    mov    0x4(%eax),%eax
   0x08048893 <+23>:    mov    %eax,-0x6c(%ebp)
   0x08048896 <+26>:    mov    %gs:0x14,%eax
   0x0804889c <+32>:    mov    %eax,-0xc(%ebp)
   0x0804889f <+35>:    xor    %eax,%eax
   0x080488a1 <+37>:    movl   $0x706d742f,-0x5c(%ebp)
   0x080488a8 <+44>:    movl   $0x7365742f,-0x58(%ebp)
   0x080488af <+51>:    movl   $0x74,-0x54(%ebp)
   0x080488b6 <+58>:    lea    -0x50(%ebp),%edx
   0x080488b9 <+61>:    mov    $0x0,%eax
   0x080488be <+66>:    mov    $0x11,%ecx
   0x080488c3 <+71>:    mov    %edx,%edi
   0x080488c5 <+73>:    rep stos %eax,%es:(%edi)
   0x080488c7 <+75>:    sub    $0x8,%esp
   0x080488ca <+78>:    push   $0x0
   0x080488cc <+80>:    lea    -0x5c(%ebp),%eax
   0x080488cf <+83>:    push   %eax
   0x080488d0 <+84>:    call   0x806cf30 <open>
   0x080488d5 <+89>:    add    $0x10,%esp
   0x080488d8 <+92>:    mov    %eax,-0x64(%ebp)
   0x080488db <+95>:    sub    $0x4,%esp
   0x080488de <+98>:    push   $0x50
   0x080488e0 <+100>:   lea    -0x5c(%ebp),%eax
   0x080488e3 <+103>:   push   %eax
   0x080488e4 <+104>:   pushl  -0x64(%ebp)
   0x080488e7 <+107>:   call   0x806cfa0 <read>
   0x080488ec <+112>:   add    $0x10,%esp
   0x080488ef <+115>:   mov    %eax,-0x60(%ebp)
=> 0x080488f2 <+118>:   sub    $0xc,%esp
   0x080488f5 <+121>:   pushl  -0x64(%ebp)
   0x080488f8 <+124>:   call   0x806d150 <close>
   0x080488fd <+129>:   add    $0x10,%esp
   0x08048900 <+132>:   mov    $0x0,%eax
   0x08048905 <+137>:   mov    -0xc(%ebp),%edx
   0x08048908 <+140>:   xor    %gs:0x14,%edx
   0x0804890f <+147>:   je     0x8048916 <main+154>
   0x08048911 <+149>:   call   0x806ef90 <__stack_chk_fail>
   0x08048916 <+154>:   lea    -0x8(%ebp),%esp
   0x08048919 <+157>:   pop    %ecx
   0x0804891a <+158>:   pop    %edi
   0x0804891b <+159>:   pop    %ebp
   0x0804891c <+160>:   lea    -0x4(%ecx),%esp
   0x0804891f <+163>:   ret
End of assembler dump.

首先是 open ,将将参数 O_RDONLY (根据#define O_RDONLY 0,值为 0x0 ),将 buffer 地址(eax) 压栈后调用系统调用 glibc 的 open 函数,disas 之:

(gdb) disas 0x806cf30
Dump of assembler code for function open:
   0x0806cf30 <+0>:     cmpl   $0x0,%gs:0xc
   0x0806cf38 <+8>:     jne    0x806cf5f
   0x0806cf3a <+0>:     push   %ebx
   0x0806cf3b <+1>:     mov    0x10(%esp),%edx
   0x0806cf3f <+5>:     mov    0xc(%esp),%ecx
   0x0806cf43 <+9>:     mov    0x8(%esp),%ebx
   0x0806cf47 <+13>:    mov    $0x5,%eax
   0x0806cf4c <+18>:    call   *0x80ea9f0
   0x0806cf52 <+24>:    pop    %ebx
   0x0806cf53 <+25>:    cmp    $0xfffff001,%eax
   0x0806cf58 <+30>:    jae    0x8070590 <__syscall_error>
   0x0806cf5e <+36>:    ret
   0x0806cf5f <+47>:    call   0x806ea80 <__libc_enable_asynccancel>
   0x0806cf64 <+52>:    push   %eax
   0x0806cf65 <+53>:    push   %ebx
   0x0806cf66 <+54>:    mov    0x14(%esp),%edx
   0x0806cf6a <+58>:    mov    0x10(%esp),%ecx
   0x0806cf6e <+62>:    mov    0xc(%esp),%ebx
   0x0806cf72 <+66>:    mov    $0x5,%eax
   0x0806cf77 <+71>:    call   *0x80ea9f0
   0x0806cf7d <+77>:    pop    %ebx
   0x0806cf7e <+78>:    xchg   %eax,(%esp)
   0x0806cf81 <+81>:    call   0x806eaf0 <__libc_disable_asynccancel>
   0x0806cf86 <+86>:    pop    %eax
   0x0806cf87 <+87>:    cmp    $0xfffff001,%eax
   0x0806cf8c <+92>:    jae    0x8070590 <__syscall_error>
   0x0806cf92 <+98>:    ret
End of assembler dump.

将压入栈中的参数保存到寄存器中,然后调用了 0x80ea9f0,用 x 查看该地址的值:

(gdb) x 0x80ea9f0
0x80ea9f0 <_dl_sysinfo>:        0xf7ffcc80

disas 之,发现来到了__kernel_vsyscall,并执行了sysenter指令:

(gdb) disas 0xf7ffcc80
Dump of assembler code for function __kernel_vsyscall:
   0xf7ffcc80 <+0>:     push   %ecx
   0xf7ffcc81 <+1>:     push   %edx
   0xf7ffcc82 <+2>:     push   %ebp
   0xf7ffcc83 <+3>:     mov    %esp,%ebp
   0xf7ffcc85 <+5>:     sysenter
   0xf7ffcc87 <+7>:     int    $0x80
   0xf7ffcc89 <+9>:     pop    %ebp
   0xf7ffcc8a <+10>:    pop    %edx
   0xf7ffcc8b <+11>:    pop    %ecx
   0xf7ffcc8c <+12>:    ret
End of assembler dump.

read 同理,只是有三个参数,需要 push 三次而已。

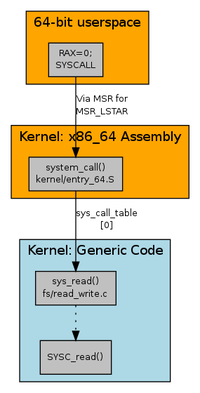

syscall / sysret

前文提到过,在32位下 Intel 和 AMD 对快速系统调用指令的定义有分歧,一个使用 sysenter ,另一个使用 syscall 。但到了64位下,为啥都统一成 syscall 了呢?

关于这个我在网上也没有找到权威的答案,只是一些道途听说:为什么IA-64指令集架构失败了?

在 64 位架构的开发上,Intel 和 AMD 选择了不同的道路:Intel搞出了一套全新的架构,名为安腾(IA-64),这套架构性能完爆x86,这样用户为了更好的性能需要进行硬件换代,岂不是喜滋滋?然而这种做法在商业上取得了失败。因为 IA-64 架构虽然提高了性能,却不能向后兼容,即原来能在 x86 下跑的程序到新架构下就跑不了了,用户非常 angry 。AMD 就比较厚道,老老实实地做出了兼容 x86 的 x86_64 ,能够运行 32 位下的程序。于是农企日常翻身,逼得 Intel 反过来兼容 x86_64 架构,于是只能支持 AMD 标准中定义的 syscall 了。


根据 Intel SDM 4-668 Vol.2B

SYSCALL invokes an OS system-call handler at privilege level 0. It does so by loading RIP from the IA32_LSTAR MSR (after saving the address of the instruction following SYSCALL into RCX). (The WRMSR instruction ensures that the IA32_LSTAR MSR always contain a canonical address.)
SYSCALL loads the CS and SS selectors with values derived from bits 47:32 of the IA32_STAR MSR. However, the CS and SS descriptor caches are not loaded from the descriptors (in GDT or LDT) referenced by those selectors. Instead, the descriptor caches are loaded with fixed values. See the Operation section for details. It is the responsibility of OS software to ensure that the descriptors (in GDT or LDT) referenced by those selector values correspond to the fixed values loaded into the descriptor caches; the SYSCALL instruction does not ensure this correspondence.
The SYSCALL instruction does not save the stack pointer (RSP). If the OS system-call handler will change the stack pointer, it is the responsibility of software to save the previous value of the stack pointer. This might be done prior to executing SYSCALL, with software restoring the stack pointer with the instruction following SYSCALL (which will be executed after SYSRET). Alternatively, the OS system-call handler may save the stack pointer and restore it before executing SYSRET.

这次我们直接从gdb出发,同样是之前的代码,只是这次编译成 64 位:

(gdb) disas
Dump of assembler code for function main:
   0x00000000004009ae <+0>:     push   %rbp
   0x00000000004009af <+1>:     mov    %rsp,%rbp
   0x00000000004009b2 <+4>:     add    $0xffffffffffffff80,%rsp
   0x00000000004009b6 <+8>:     mov    %edi,-0x74(%rbp)
   0x00000000004009b9 <+11>:    mov    %rsi,-0x80(%rbp)
   0x00000000004009bd <+15>:    mov    %fs:0x28,%rax
   0x00000000004009c6 <+24>:    mov    %rax,-0x8(%rbp)
   0x00000000004009ca <+28>:    xor    %eax,%eax
   0x00000000004009cc <+30>:    movabs $0x7365742f706d742f,%rax
   0x00000000004009d6 <+40>:    mov    %rax,-0x60(%rbp)
   0x00000000004009da <+44>:    movq   $0x74,-0x58(%rbp)
   0x00000000004009e2 <+52>:    lea    -0x50(%rbp),%rdx
   0x00000000004009e6 <+56>:    mov    $0x0,%eax
   0x00000000004009eb <+61>:    mov    $0x8,%ecx
   0x00000000004009f0 <+66>:    mov    %rdx,%rdi
   0x00000000004009f3 <+69>:    rep stos %rax,%es:(%rdi)
   0x00000000004009f6 <+72>:    lea    -0x60(%rbp),%rax
   0x00000000004009fa <+76>:    mov    $0x0,%esi
   0x00000000004009ff <+81>:    mov    %rax,%rdi
   0x0000000000400a02 <+84>:    mov    $0x0,%eax
   0x0000000000400a07 <+89>:    callq  0x43e650 <open64>
   0x0000000000400a0c <+94>:    mov    %eax,-0x68(%rbp)
   0x0000000000400a0f <+97>:    lea    -0x60(%rbp),%rcx
   0x0000000000400a13 <+101>:   mov    -0x68(%rbp),%eax
   0x0000000000400a16 <+104>:   mov    $0x50,%edx
   0x0000000000400a1b <+109>:   mov    %rcx,%rsi
   0x0000000000400a1e <+112>:   mov    %eax,%edi
   0x0000000000400a20 <+114>:   callq  0x43e6b0 <read>
   0x0000000000400a25 <+119>:   mov    %eax,-0x64(%rbp)
=> 0x0000000000400a28 <+122>:   mov    -0x68(%rbp),%eax
   0x0000000000400a2b <+125>:   mov    %eax,%edi
   0x0000000000400a2d <+127>:   callq  0x43e900 <close>
   0x0000000000400a32 <+132>:   mov    $0x0,%eax
   0x0000000000400a37 <+137>:   mov    -0x8(%rbp),%rdx
   0x0000000000400a3b <+141>:   xor    %fs:0x28,%rdx
   0x0000000000400a44 <+150>:   je     0x400a4b <main+157>
   0x0000000000400a46 <+152>:   callq  0x442010 <__stack_chk_fail>
   0x0000000000400a4b <+157>:   leaveq
   0x0000000000400a4c <+158>:   retq
End of assembler dump.


(gdb) disas 0x43e650
Dump of assembler code for function open64:
   0x000000000043e650 <+0>:     cmpl   $0x0,0x28db65(%rip)        # 0x6cc1bc <__libc_multiple_threads>
   0x000000000043e657 <+7>:     jne    0x43e66d <open64+29>
   0x000000000043e659 <+0>:     mov    $0x2,%eax
   0x000000000043e65e <+5>:     syscall
   0x000000000043e660 <+7>:     cmp    $0xfffffffffffff001,%rax
   0x000000000043e666 <+13>:    jae    0x4436b0 <__syscall_error>
   0x000000000043e66c <+19>:    retq
   0x000000000043e66d <+29>:    sub    $0x8,%rsp
   0x000000000043e671 <+33>:    callq  0x441b70 <__libc_enable_asynccancel>
   0x000000000043e676 <+38>:    mov    %rax,(%rsp)
   0x000000000043e67a <+42>:    mov    $0x2,%eax
   0x000000000043e67f <+47>:    syscall
   0x000000000043e681 <+49>:    mov    (%rsp),%rdi
   0x000000000043e685 <+53>:    mov    %rax,%rdx
   0x000000000043e688 <+56>:    callq  0x441bd0 <__libc_disable_asynccancel>
   0x000000000043e68d <+61>:    mov    %rdx,%rax
   0x000000000043e690 <+64>:    add    $0x8,%rsp
   0x000000000043e694 <+68>:    cmp    $0xfffffffffffff001,%rax
   0x000000000043e69a <+74>:    jae    0x4436b0 <__syscall_error>
   0x000000000043e6a0 <+80>:    retq
End of assembler dump.

open64 定义在 glibc 的sysdeps/posix/open64.c中:

#include <fcntl.h>
#include <stdarg.h>
#include <sysdep-cancel.h>

/* Open FILE with access OFLAG.  If O_CREAT or O_TMPFILE is in OFLAG,
   a third argument is the file protection.  */
int
__libc_open64 (const char *file, int oflag, ...)
{
    int mode = 0;

    if (__OPEN_NEEDS_MODE (oflag))
    {
        va_list arg;
        va_start (arg, oflag);
        mode = va_arg (arg, int);
        va_end (arg);
    }

    if (SINGLE_THREAD_P)
        return __libc_open (file, oflag | O_LARGEFILE, mode);

    int oldtype = LIBC_CANCEL_ASYNC ();

    int result = __libc_open (file, oflag | O_LARGEFILE, mode);

    LIBC_CANCEL_RESET (oldtype);

    return result;
}
weak_alias (__libc_open64, __open64)
libc_hidden_weak (__open64)
weak_alias (__libc_open64, open64)

再看__libc_open,定义在unix/sysv/linux/generic/open.c

#include <errno.h>
#include <fcntl.h>
#include <stdarg.h>
#include <stdio.h>
#include <sysdep-cancel.h>

/* Open FILE with access OFLAG.  If O_CREAT or O_TMPFILE is in OFLAG,
   a third argument is the file protection.  */
int
__libc_open (const char *file, int oflag, ...)
{
    int mode = 0;

    if (__OPEN_NEEDS_MODE (oflag))
    {
        va_list arg;
        va_start (arg, oflag);
        mode = va_arg (arg, int);
        va_end (arg);
    }
    return SYSCALL_CANCEL (openat, AT_FDCWD, file, oflag, mode);
}

我们将宏展开:

SYSCALL_CANCEL(openat, AT_FDCWD, file, oflag, mode)
=> __SYSCALL_CALL(openat, AT_FDCWD, file, oflag, mode)
=> __SYSCALL_DISP(__SYSCALL, openat, AT_FDCWD, file, oflag, mode)
=> __SYSCALL_CONCAT(__SYSCALL, 4)(openat, AT_FDCWD, file, oflag, mode)
=> __SYSCALL_CONCAT_X(__SYSCALL, 4)(openat, AT_FDCWD, file, oflag, mode)
=> __SYSCALL5(openat, AT_FDCWD, file, oflag, mode)
=> INLINE_SYSCALL (openat, 4, AT_FDCWD, file, oflag, mode)
=> INTERNAL_SYSCALL (openat, _, 4, AT_FDCWD, file, oflag, mode)
=> INTERNAL_SYSCALL_NCS (__NR_openat, _, 4, AT_FDCWD, file, oflag, mode)

最终到达 INTERNAL_SYSCALL_NCS :

# define INTERNAL_SYSCALL_NCS(name, err, nr, args...) \
  ({                                          \
    unsigned long int resultvar;                          \
    LOAD_ARGS_##nr (args)                             \
    LOAD_REGS_##nr                                \
    asm volatile (                                \
    "syscall\n\t"                                 \
    : "=a" (resultvar)                                \
    : "0" (name) ASM_ARGS_##nr : "memory", REGISTERS_CLOBBERED_BY_SYSCALL);   \
    (long int) resultvar; })

LOAD_ARGS_##nr 负责把参数 args 展开,然后由 LOAD_REGS_##nr 设置到相应的寄存器中,因为 syscall 通过寄存器传参。最终调用 syscall 。

根据 Intel SDM,syscall 会将当前 rip 存到 rcx ,然后将 IA32_LSTAR 加载到 rip 。同时将 IA32_STAR[47:32] 加载到cs,IA32_STAR[47:32] + 8 加载到 ss (在 GDT 中,ss 就跟在 cs 后面)。

MSR IA32_LSTAR (MSR_LSTAR) 和 IA32_STAR (MSR_STAR) 在 arch/x86/kernel/cpu/common.c 的 syscall_init 中初始化:

void syscall_init(void)
{
    wrmsr(MSR_STAR, 0, (__USER32_CS << 16) | __KERNEL_CS);
    wrmsrl(MSR_LSTAR, (unsigned long)entry_SYSCALL_64);

#ifdef CONFIG_IA32_EMULATION
    wrmsrl(MSR_CSTAR, (unsigned long)entry_SYSCALL_compat);
    /*
     * This only works on Intel CPUs.
     * On AMD CPUs these MSRs are 32-bit, CPU truncates MSR_IA32_SYSENTER_EIP.
     * This does not cause SYSENTER to jump to the wrong location, because
     * AMD doesn't allow SYSENTER in long mode (either 32- or 64-bit).
     */
    wrmsrl_safe(MSR_IA32_SYSENTER_CS, (u64)__KERNEL_CS);
    wrmsrl_safe(MSR_IA32_SYSENTER_ESP, 0ULL);
    wrmsrl_safe(MSR_IA32_SYSENTER_EIP, (u64)entry_SYSENTER_compat);
#else
    wrmsrl(MSR_CSTAR, (unsigned long)ignore_sysret);
    wrmsrl_safe(MSR_IA32_SYSENTER_CS, (u64)GDT_ENTRY_INVALID_SEG);
    wrmsrl_safe(MSR_IA32_SYSENTER_ESP, 0ULL);
    wrmsrl_safe(MSR_IA32_SYSENTER_EIP, 0ULL);
#endif

    /* Flags to clear on syscall */
    wrmsrl(MSR_SYSCALL_MASK,
           X86_EFLAGS_TF|X86_EFLAGS_DF|X86_EFLAGS_IF|
           X86_EFLAGS_IOPL|X86_EFLAGS_AC|X86_EFLAGS_NT);
}

可以看到 MSR_STAR 的第 32-47 位设置为 kernel mode 的 cs,48-63位设置为 user mode 的 cs。而 IA32_LSTAR 被设置为函数 entry_SYSCALL_64 的起始地址。

于是 syscall 时,跳转到 entry_SYSCALL_64 开始执行,其定义在 arch/x86/entry/entry_64.S

ENTRY(entry_SYSCALL_64)
    /*
     * Interrupts are off on entry.
     * We do not frame this tiny irq-off block with TRACE_IRQS_OFF/ON,
     * it is too small to ever cause noticeable irq latency.
     */
    SWAPGS_UNSAFE_STACK
    // KAISER 进内核态需要切到内核页表
    SWITCH_KERNEL_CR3_NO_STACK
    /*
     * A hypervisor implementation might want to use a label
     * after the swapgs, so that it can do the swapgs
     * for the guest and jump here on syscall.
     */
GLOBAL(entry_SYSCALL_64_after_swapgs)
    // 将用户栈偏移保存到 per-cpu 变量 rsp_scratch 中
    movq    %rsp, PER_CPU_VAR(rsp_scratch)
    // 加载内核栈偏移
    movq    PER_CPU_VAR(cpu_current_top_of_stack), %rsp

    TRACE_IRQS_OFF

    /* Construct struct pt_regs on stack */
    pushq   $__USER_DS          /* pt_regs->ss */
    pushq   PER_CPU_VAR(rsp_scratch)    /* pt_regs->sp */
    pushq   %r11                /* pt_regs->flags */
    pushq   $__USER_CS          /* pt_regs->cs */
    pushq   %rcx                /* pt_regs->ip */
    pushq   %rax                /* pt_regs->orig_ax */
    pushq   %rdi                /* pt_regs->di */
    pushq   %rsi                /* pt_regs->si */
    pushq   %rdx                /* pt_regs->dx */
    pushq   %rcx                /* pt_regs->cx */
    pushq   $-ENOSYS            /* pt_regs->ax */
    pushq   %r8             /* pt_regs->r8 */
    pushq   %r9             /* pt_regs->r9 */
    pushq   %r10                /* pt_regs->r10 */
    pushq   %r11                /* pt_regs->r11 */
    // 为r12-r15, rbp, rbx保留位置
    sub $(6*8), %rsp            /* pt_regs->bp, bx, r12-15 not saved */

    /*
     * If we need to do entry work or if we guess we'll need to do
     * exit work, go straight to the slow path.
     */
    movq    PER_CPU_VAR(current_task), %r11
    testl   $_TIF_WORK_SYSCALL_ENTRY|_TIF_ALLWORK_MASK, TASK_TI_flags(%r11)
    jnz entry_SYSCALL64_slow_path

entry_SYSCALL_64_fastpath:
    /*
     * Easy case: enable interrupts and issue the syscall.  If the syscall
     * needs pt_regs, we'll call a stub that disables interrupts again
     * and jumps to the slow path.
     */
    TRACE_IRQS_ON
    ENABLE_INTERRUPTS(CLBR_NONE)
#if __SYSCALL_MASK == ~0
    // 确保系统调用号没超过最大值,超过了则跳转到后面的符号 1 处进行返回
    cmpq    $__NR_syscall_max, %rax
#else
    andl    $__SYSCALL_MASK, %eax
    cmpl    $__NR_syscall_max, %eax
#endif
    ja  1f              /* return -ENOSYS (already in pt_regs->ax) */
    // 除系统调用外的其他调用都通过 rcx 来传第四个参数,因此将 r10 的内容设置到 rcx
    movq    %r10, %rcx

    /*
     * This call instruction is handled specially in stub_ptregs_64.
     * It might end up jumping to the slow path.  If it jumps, RAX
     * and all argument registers are clobbered.
     */
    // 调用系统调用表中对应的函数
    call    *sys_call_table(, %rax, 8)
.Lentry_SYSCALL_64_after_fastpath_call:
    // 将函数返回值压到栈中,返回时弹出
    movq    %rax, RAX(%rsp)
1:

    /*
     * If we get here, then we know that pt_regs is clean for SYSRET64.
     * If we see that no exit work is required (which we are required
     * to check with IRQs off), then we can go straight to SYSRET64.
     */
    DISABLE_INTERRUPTS(CLBR_NONE)
    TRACE_IRQS_OFF
    movq    PER_CPU_VAR(current_task), %r11
    testl   $_TIF_ALLWORK_MASK, TASK_TI_flags(%r11)
    jnz 1f

    LOCKDEP_SYS_EXIT
    TRACE_IRQS_ON       /* user mode is traced as IRQs on */
    movq    RIP(%rsp), %rcx
    movq    EFLAGS(%rsp), %r11
    RESTORE_C_REGS_EXCEPT_RCX_R11
    /*
     * This opens a window where we have a user CR3, but are
     * running in the kernel.  This makes using the CS
     * register useless for telling whether or not we need to
     * switch CR3 in NMIs.  Normal interrupts are OK because
     * they are off here.
     */
    SWITCH_USER_CR3
    movq    RSP(%rsp), %rsp
    USERGS_SYSRET64

1:
    /*
     * The fast path looked good when we started, but something changed
     * along the way and we need to switch to the slow path.  Calling
     * raise(3) will trigger this, for example.  IRQs are off.
     */
    TRACE_IRQS_ON
    ENABLE_INTERRUPTS(CLBR_NONE)
    SAVE_EXTRA_REGS
    movq    %rsp, %rdi
    call    syscall_return_slowpath /* returns with IRQs disabled */
    jmp return_from_SYSCALL_64

entry_SYSCALL64_slow_path:
    /* IRQs are off. */
    SAVE_EXTRA_REGS
    movq    %rsp, %rdi
    call    do_syscall_64       /* returns with IRQs disabled */

return_from_SYSCALL_64:
    RESTORE_EXTRA_REGS
    TRACE_IRQS_IRETQ        /* we're about to change IF */

    /*
     * Try to use SYSRET instead of IRET if we're returning to
     * a completely clean 64-bit userspace context.
     */
    movq    RCX(%rsp), %rcx
    movq    RIP(%rsp), %r11
    cmpq    %rcx, %r11          /* RCX == RIP */
    jne opportunistic_sysret_failed

    /*
     * On Intel CPUs, SYSRET with non-canonical RCX/RIP will #GP
     * in kernel space.  This essentially lets the user take over
     * the kernel, since userspace controls RSP.
     *
     * If width of "canonical tail" ever becomes variable, this will need
     * to be updated to remain correct on both old and new CPUs.
     */
    .ifne __VIRTUAL_MASK_SHIFT - 47
    .error "virtual address width changed -- SYSRET checks need update"
    .endif

    /* Change top 16 bits to be the sign-extension of 47th bit */
    shl $(64 - (__VIRTUAL_MASK_SHIFT+1)), %rcx
    sar $(64 - (__VIRTUAL_MASK_SHIFT+1)), %rcx

    /* If this changed %rcx, it was not canonical */
    cmpq    %rcx, %r11
    jne opportunistic_sysret_failed

    cmpq    $__USER_CS, CS(%rsp)        /* CS must match SYSRET */
    jne opportunistic_sysret_failed

    movq    R11(%rsp), %r11
    cmpq    %r11, EFLAGS(%rsp)      /* R11 == RFLAGS */
    jne opportunistic_sysret_failed

    /*
     * SYSCALL clears RF when it saves RFLAGS in R11 and SYSRET cannot
     * restore RF properly. If the slowpath sets it for whatever reason, we
     * need to restore it correctly.
     *
     * SYSRET can restore TF, but unlike IRET, restoring TF results in a
     * trap from userspace immediately after SYSRET.  This would cause an
     * infinite loop whenever #DB happens with register state that satisfies
     * the opportunistic SYSRET conditions.  For example, single-stepping
     * this user code:
     *
     *           movq   $stuck_here, %rcx
     *           pushfq
     *           popq %r11
     *   stuck_here:
     *
     * would never get past 'stuck_here'.
     */
    testq   $(X86_EFLAGS_RF|X86_EFLAGS_TF), %r11
    jnz opportunistic_sysret_failed

    /* nothing to check for RSP */

    cmpq    $__USER_DS, SS(%rsp)        /* SS must match SYSRET */
    jne opportunistic_sysret_failed

    /*
     * We win! This label is here just for ease of understanding
     * perf profiles. Nothing jumps here.
     */
syscall_return_via_sysret:
    /* rcx and r11 are already restored (see code above) */
    RESTORE_C_REGS_EXCEPT_RCX_R11
    /*
     * This opens a window where we have a user CR3, but are
     * running in the kernel.  This makes using the CS
     * register useless for telling whether or not we need to
     * switch CR3 in NMIs.  Normal interrupts are OK because
     * they are off here.
     */
    // KAISER 返回用户态需要切回用户页表
    SWITCH_USER_CR3
    /* 根据压栈的内容,恢复 rsp 为用户态的栈顶 */
    movq    RSP(%rsp), %rsp
    USERGS_SYSRET64

    // 无法快速返回,只能退化到 iret
opportunistic_sysret_failed:
    /*
     * This opens a window where we have a user CR3, but are
     * running in the kernel.  This makes using the CS
     * register useless for telling whether or not we need to
     * switch CR3 in NMIs.  Normal interrupts are OK because
     * they are off here.
     */
    SWITCH_USER_CR3
    SWAPGS
    jmp restore_c_regs_and_iret
END(entry_SYSCALL_64)

注意 syscall 不会保存栈指针,因此 handler 首先将当前用户态栈偏移 rsp 存到 per-cpu 变量 rsp_scratch 中,然后将 per-cpu 变量 cpu_current_top_of_stack ,即内核态的栈偏移加载到 rsp。

随后将各寄存器中的值压入内核态的栈中,包括:

  • rax system call number
  • rcx return address
  • r11 saved rflags (note: r11 is callee-clobbered register in C ABI)
  • rdi arg0
  • rsi arg1
  • rdx arg2
  • r10 arg3 (needs to be moved to rcx to conform to C ABI)
  • r8 arg4
  • r9 arg5

接着根据系统调用号从系统调用表(sys_call_table) 中找到相应的处理函数,如 sys_open ,进行调用。64位下系统调用定义在 arch/x86/entry/syscalls/syscall_64.tbl中,ABI 和 32 位不同。

如果一切顺利的话,最终通过 USERGS_SYSRET64 ,即 sysretq 返回。

总结

本文主要分析了Linux下的三种系统调用方式:int 0x80 ,sysenter 和 syscall 。

传统系统调用(int 0x80) 通过中断/异常实现,在执行 int 指令时,发生 trap。硬件找到在中断描述符表中的表项,在自动切换到内核栈 (tss.ss0 : tss.esp0) 后根据中断描述符的 segment selector 在 GDT / LDT 中找到对应的段描述符,从段描述符拿到段的基址,加载到 cs ,将 offset 加载到 eip。最后硬件将 ss / sp / eflags / cs / ip / error code 依次压到内核栈。返回时,iret 将先前压栈的 ss / sp / eflags / cs / ip 弹出,恢复用户态调用时的寄存器上下文。

sysenter 和 syscall 是为了加速系统调用所引入的新指令,通过引入新的 MSR 来存放内核态的代码和栈的段号和偏移量,从而实现快速跳转:

在调用 sysenter 时将 SYSENTER_CS_MSR 加载到 cs,将 SYSENTER_CS_MSR + 8 加载到 ss,将 IA32_SYSENTER_EIP 加载到 eip ,将 IA32_SYSENTER_ESP 加载到 esp ,整套切换到内核态。返回时,sysexit 将 IA32_SYSENTER_CS + 16 加载到 cs ,将 IA32_SYSENTER_CS + 24 加载到 cs ,而 eip 和 esp 分别从 edx 和 ecx 中加载,因此返回前应该将压栈的用户态 eip(计算出来的) 和 esp(调用前用户态保存到 ebp 进行传递) 设置到这两个寄存器中。

在调用 syscall 时,会自动将 rip 保存到 rcx ,然后将 IA32_LSTAR 加载到 rip 。同时将 IA32_STAR[47:32] 加载到 cs ,IA32_STAR[47:32] + 8 加载到 ss 。栈顶指针的切换会延迟到内核态系统调用入口点 entry_SYSCALL_64 后进行处理,将用户态栈偏移 rsp 存到 per-cpu 变量 rsp_scratch 中,然后将 per-cpu 变量 cpu_current_top_of_stack ,即内核态的栈偏移加载到 rsp。返回时,sysret 将 IA32_STAR[63:48] 加载到 cs ,IA32_STAR[63:48] + 8 加载到 ss ,而 rip 从 rcx 中加载,因此返回前应该将压栈的用户态 rip 设置到 rcx 中。对于 rsp ,返回前根据先前压栈内容先设置为用户态 rsp。

文章中肯定有遗漏或理解错误的地方,欢迎留言指正,不胜感激。


关注微信公众号【秃头哥编程】,随时获取最新动态。

参考

System calls · Linux Inside0xax.gitbooks.io
The Definitive Guide to Linux System Callsblog.packagecloud.io图标Linux 2.6 对新型 CPU 快速系统调用的支持www.ibm.com图标Anatomy of a system call, part 1lwn.net图标

原文链接

Linux系统调用过程分析 - 博客 - binsitewww.binss.me图标

编辑于 2019-08-25

文章被以下专栏收录
